AE60 Fully Automatic Pneumatic Grommet Setting Machine

ae60-automatic-pneumatic-grommet-setting-machine

Model AE60

Fully Automatic Grommet Setting Machine

Fully automatic feed (grommets and washers) electric/pneumatic machine with laser pointer, washer detector mechanism that prevents the machine from setting a grommet without a washer.

  • Feeds grommet and washer, cuts hole and makes setting in one cycle.
  • Extremely fast cycle time – 75 grommets per minute
  • Grommet sizes up to #5 Stainless Steel and #6 Brass
  • Electronic washer detector and slide mechanism for perfect washer placement
  • Positioning device for consistent spacing of settings
  • Safe and easy to use
  • Laser pointer standard

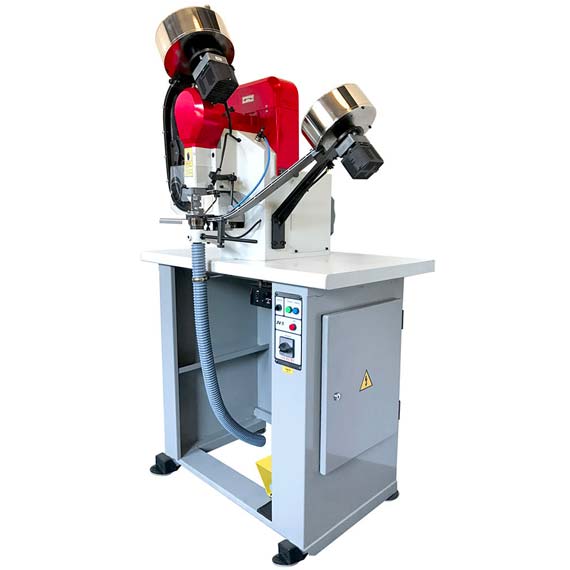

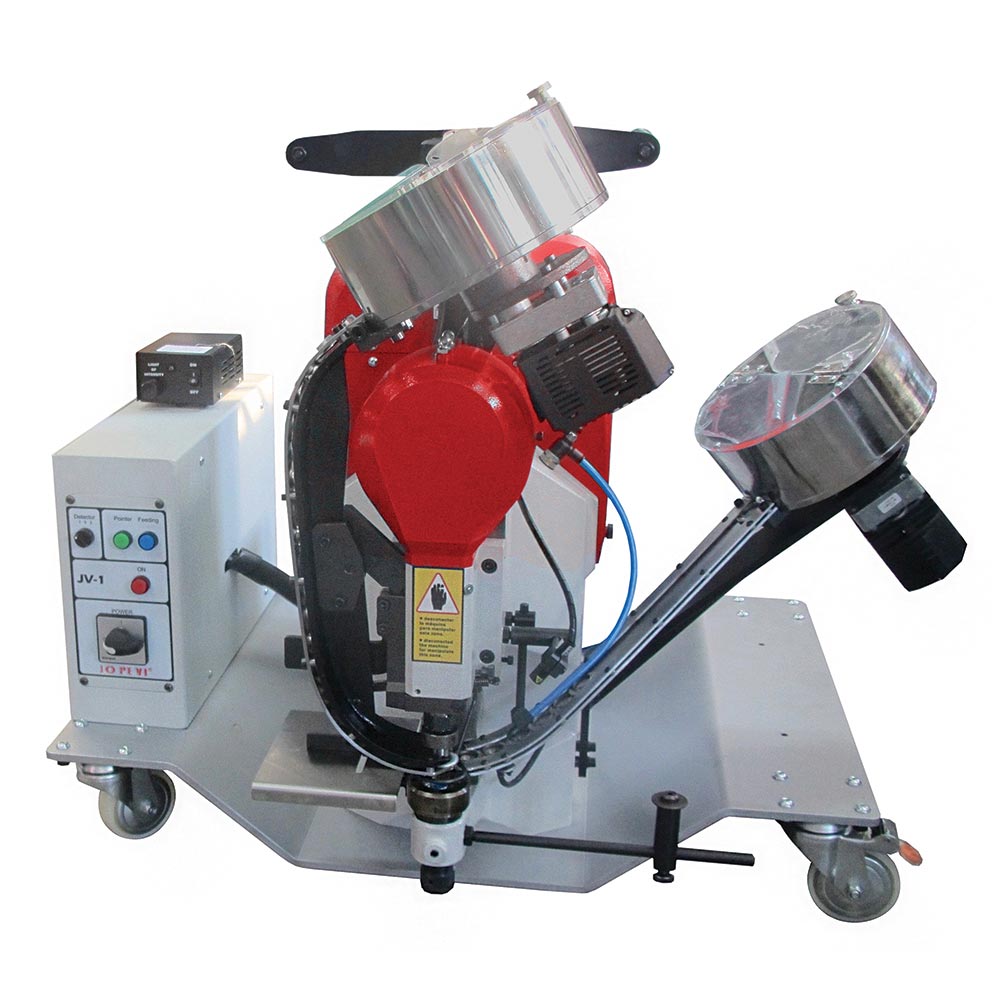

  • Available on a table or trolley mount

PDF Datasheet

Technical Specifications

FeatureImperialMetric
Grommet size (hole diameter) – SS1/4″ – 11/16″6 mm – 18 mm
Grommet size (hole diameter) – Brass1/4″ – 13/16″6 mm – 20 mm
Throat depth2 – 3/8″60 mm
Machine weight (Bench model)304 lbs138 kgs
Machine size on bench (DxWxH)28″ x 36″ x 59″70 cm x 90 cm x 149 cm
Cycles per minute75
Electrical devicesLaser pointer (Included)
