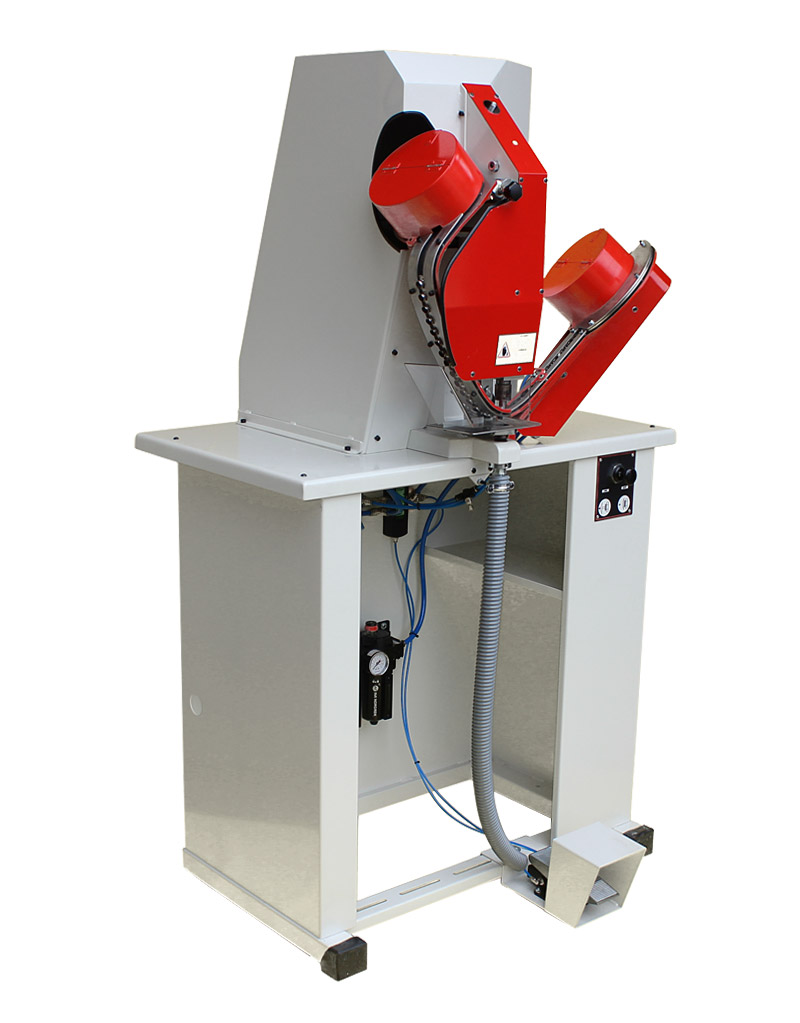

AP50 Fully Automatic Pneumatic Eyelet Setting Machine

eyelet machine

Model AP50

Automatic Pneumatic Machine

Our most powerful grommeting machine for difficult material applications. Upgraded pneumatics for fast settings (40 grommets with washers per minute). Feeds parts, punches and sets grommets with washers in one pneumatic operation. No electricity required.

  • Feeds grommet and washer, cuts hole and makes setting in one cycle
  • Fast cycle time – 40 grommets per minute
  • Grommet sizes up to #5 Stainless Steel and #6 Brass
  • Multiple material thicknesses may be used without adjustment
  • Fully pneumatic, no electricity required
  • Positive washer positioning by slide mechanism
  • Positioning device for consistent spacing of settings
  • Safe and easy to use

PDF Datasheet

Technical Specifications

FeatureImperialMetric
Grommet size (hole diameter) – SS1/4″ – 3/4″6 mm – 20mm
Grommet size (hole diameter) – Brass1/4″ – 3/4″6 mm – 20mm
Throat depth4 1/2″115 mm
Machine weight (Bench model)289 lbs131 kgs
Machine size on bench (DxWxH)36″ x 24″ x 63″91 cm x 60 cm x 158 cm
Working air pressure80 – 100 psi6 – 7 bar
Air consumption per cycle0.039 ft31.4 L
Cycles per minute40
Electrical devicesLaser pointer (optional)
